ArenaRed’s Delivery Package:

• electronic control unit with ar-cpbc-chip
• combustion pressure sensor (cps), automotive, fiber optical
• fuel injectors, with integrated tip cooling, double wall leak detection, integrated cps
• with rcci 1% diesel is injected 100% before Top Dead Centre resulting in ignition in the gas stage instead of ignition in the flued stage like today diesel only.
• rcci results in 10%+ better fuel economy than diesel only
• tier iv final, stage-v and euro-6D without scr urea
• cheaper production of entire engine due to the possibility to allow lower tolerances of compression ratio and injectors
• enabling bio based economy; all fuels become possible, like hydrogen, biogas, methanol and ethanol.
• fuels in random mix from 1 tank

ArenaRed Designs, Sources Out And Delivers:

• ar-ecu with injector drivers, obd, canbus
• chip for combustion pressure based control
• fiber optical combustion pressure sensor (cps)
• diesel injector with integrated cps
• double wall gas safe maritime class approved gas injector
• total solutions

want more information?

RCCI Diesel To Bio-/E Fuel

diesel to hydrogen, biogas, methanol and or ethanol conversions

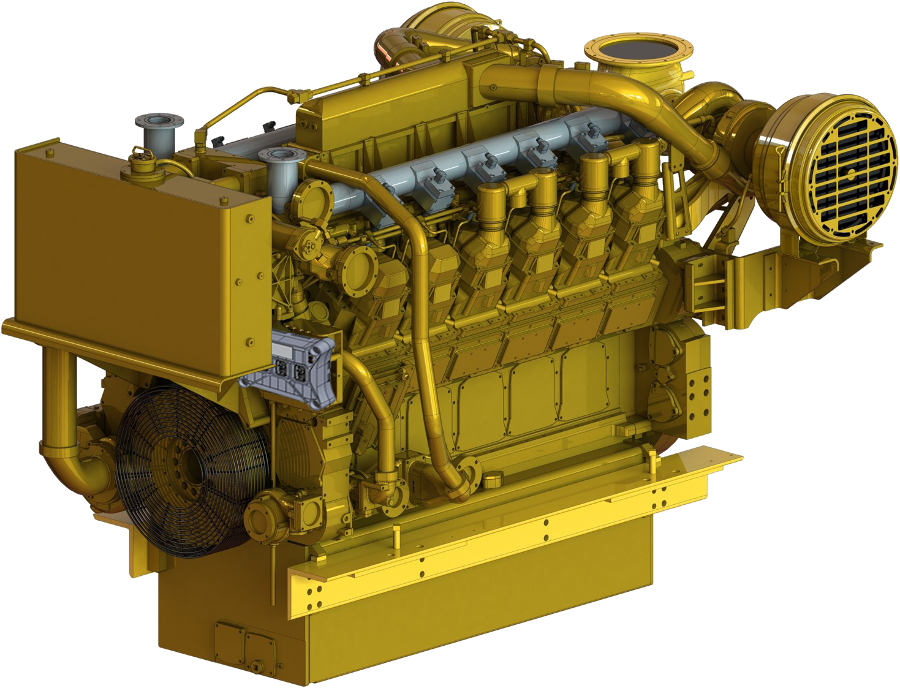

running fuels like 99% (e-)hydrogen, (bio)gas, (e-)methanol, ethanol, (bio)lpg and gasoline. 1% (bio or e-)diesel is needed for ignition. docat stands for dolderman caterpillar, 3500 stands for the type of caterpillar engine, deliverable between 200kw and 3.500kw, ar stands for arenared.

dolderman is the first customer of arenared. Dolderman is over 95 years active in the european inland marine navigation market and is official dealer of the leading engine manufacturer caterpillar. besides caterpillar dolderman is also dealer of hatz and john deere.

dolderman has applied the arenared system onto the inland waterway ship, oil tanker mts argonon from deen shipping. the mts argonon is the first field application with the arenared technology and is also the first field rcci application in the world. meaning the mts argonon is the first rcci engine in the world running in the field or running in commercial use as a commercial product that can be ordered today.

arenared has developed and sources out under the responsibility of arenared’s production of the 3500 rcci conversion retrofit kit.

arenared and dolderman have put a focus on safety first. this has resulted in an ultra-safe, smart software, double wall gas injectors with leak detection package. the system is entirely overviewed, found and approved to be safe by Lloyds register.

specs of the docat 3500ar rcci package

• 10 % higher fuel efficiency than diesel only
• stage-v compliant engine-out emissions, no scr (urea) needed
• 99 % hydrogen, biogas, methanol, ethanol, gasoline and or lpg
• 100 % diesel still possible
• retrofit rcci port fuel and or rcci single point, depending on customer demands
• rcci combustion strategy
• less noise than gas engine
• longer engine life
• no spark plugs
• no calibration costs
• optimization throughout the entire lifetime
• 100.000 hr. expected cylinder piston lifetime for inland navigation
• more robust by cylinder-, engine monitoring

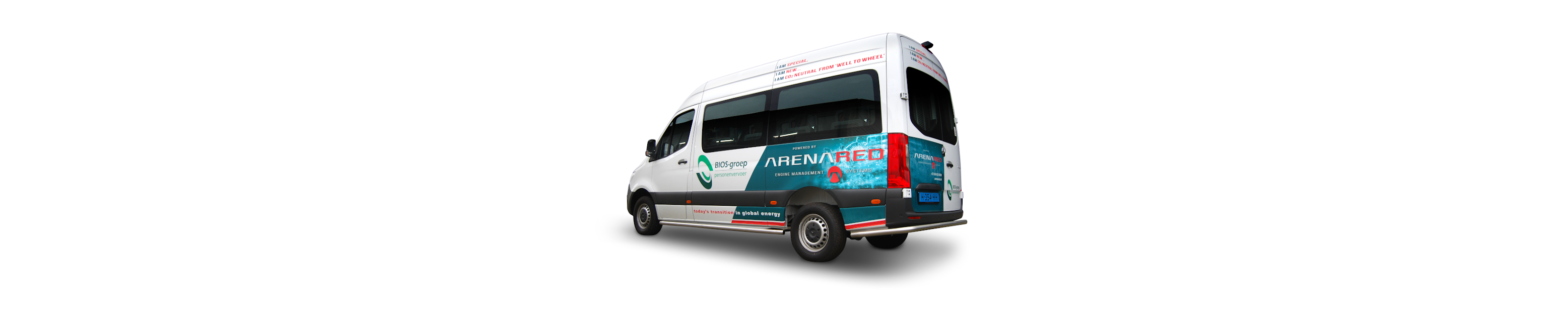

specs of the rcci sprinter conversion kit

• 10% higher fuel efficiency than diesel only
• euro-6d. no scr (urea) needed
• 99% hydrogen, biogas, methanol, ethanol, gasoline and or lpg as possible fuels
• 100% diesel operation still possible
• retrofit rcci, rcci combustion strategy
• less noise than gas engine
• longer engine life due to smoother combustion and cylinder monitoring
• no spark plugs
• no calibration costs
• optimization throughout the entire lifetime
• 1.000.000 km expected engine life
• cylinder / engine monitoring
• maintenance intervals optionally given by the rcci conversion kit.
